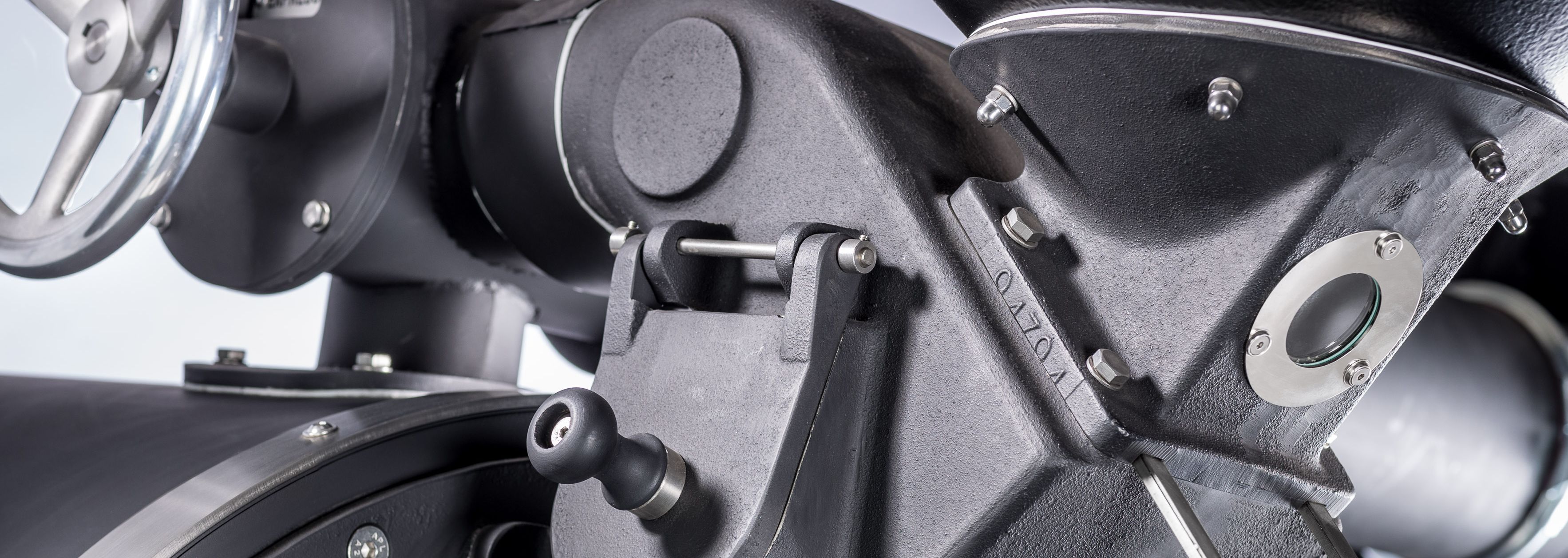

The UG series was developed in the 1920s. The universal gas roasters, that are still built according to the original plans, are characterized by their ability to adjust the use of the hot air flow by means of the “flavor wheel”: with a flick of the wrist, you can steer it in different directions. All roasters of the UG series are equipped with a state-of-the-art drive, burner, and electrical technology.

Round shapes and clear lines: Even from a distance, the roasters of the UG series radiate an unmistakable individuality. Thanks to a maximum batch size of 25 kilograms and the successful combination of state-of-the-art technology with a matured retro design, the UG series looks fabulous out on display.

YOUR BENEFITS

CONSISTENTLY HIGH COFFEE QUALITY

Thermocouples for recording machine- and process-related data enable optimum control over the roasting process for constant and reproducible roasting results.





FLEXIBILITY

The extended batch size range, individually adjustable frequency converters and the targeted airflow by means of the traditional "aroma wheel" allow maximum flexibility in the aroma development of different coffee types.





INDIVIDUALITY

The classic look can be individually rounded off by adapting different design parts according to personal preference, unique for every roastery!









VERSIONS

Roasting timeRoasting timeRoasting time[min]
Roasting capacityRoasting capacityRoasting capacity[kg/h]
Batch sizeBatch sizeBatch size[kg]
HeatingHeatingHeating
Space requirementSpace requirementSpace requirementmin. - max. [m²]
HeightHeightHeight[m]
UG15
Roasting timeRoasting timeRoasting time[min]
10-20
Roasting capacityRoasting capacityRoasting capacity[kg/h]
30 - 65
Batch sizeBatch sizeBatch size[kg]
7 - 15
HeatingHeatingHeating
propane, natural gas
Space requirementSpace requirementSpace requirementmin. - max. [m²]
8 - 15
HeightHeightHeight[m]
2,5

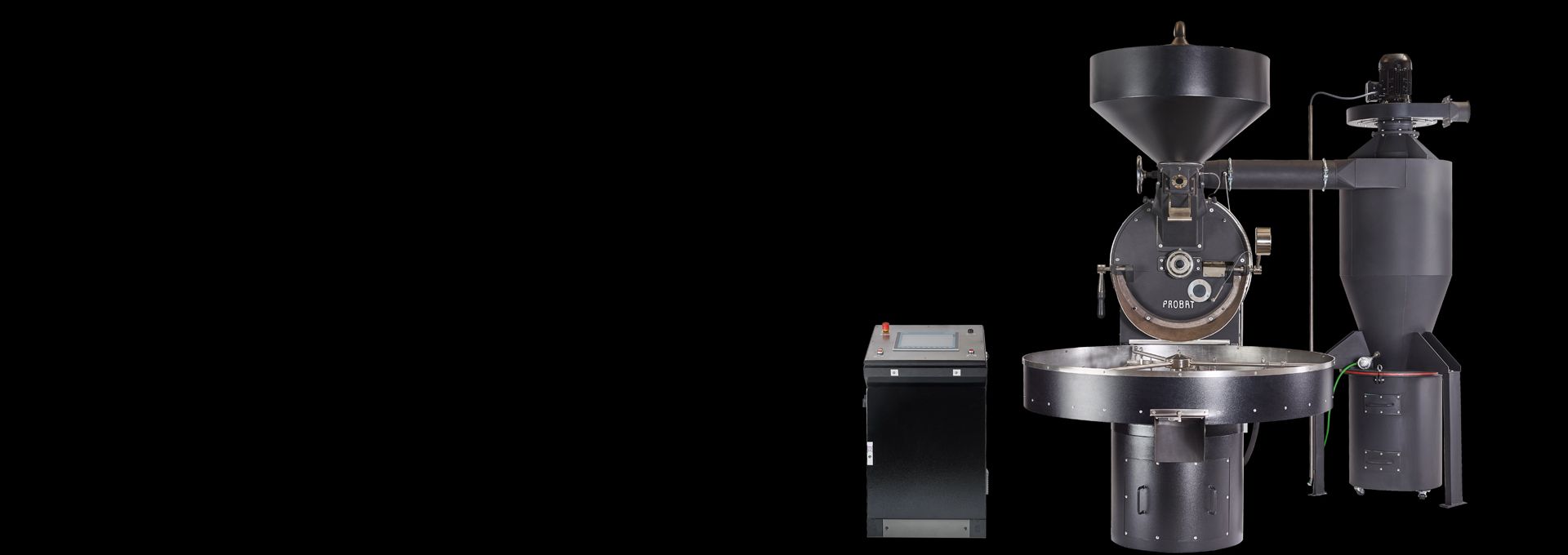

UG22
Roasting timeRoasting timeRoasting time[min]
10-20
Roasting capacityRoasting capacityRoasting capacity[kg/h]
50 - 100
Batch sizeBatch sizeBatch size[kg]
8 - 25
HeatingHeatingHeating
propane, natural gas
Space requirementSpace requirementSpace requirementmin. - max. [m²]
10 - 16
HeightHeightHeight[m]
2,5





CONTROL

All roasters of the UG series are equipped with thermocouples as standard to document supply air, product, and exhaust air temperature. The basic version is controlled manually, also by deploying the traditional ‘aroma wheel’. Alternatively, the UG roasters can be fitted with a semiautomatic control via a touch panel.

DATA COLLECTION
The control solution of the UG series enables safe and automatic reproduction of all stored user-defined settings via recipe management. Twelve temperature levels can be pre-defined for each recipe. A manual adaptation of recipes during the roasting process is also possible while two additional potentiometers allow for mechanical regulation of the air volume and burner capacity in steps of 1 %.
